KR 240 R3200 PA

Technical data

Maximum reach：：3195

Rated payload：240kg

Maximum supplementary load, rotating column / link arm / arm：0/0/50kg

Pose repeatability (ISO 9283)：± 0.06 mm

Number of axes：5

Mounting position；Floor

Footprint：830 mm x 830 mm

Weight：1103kg

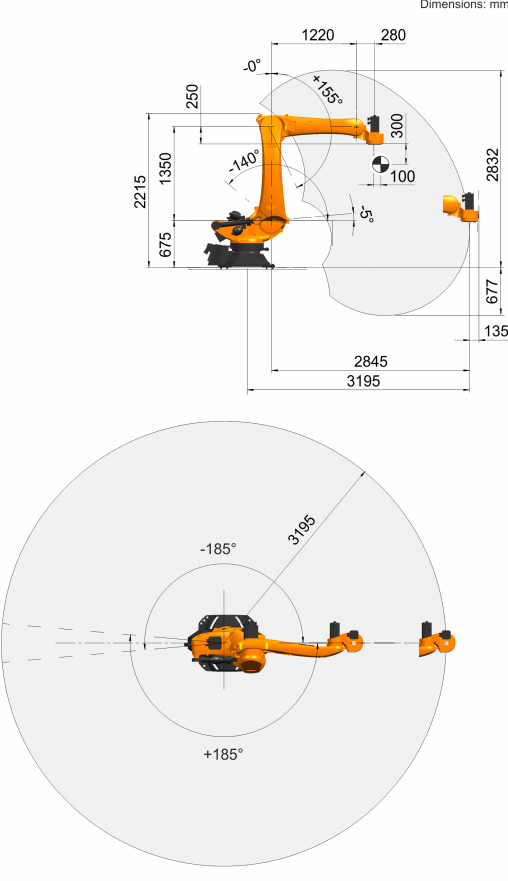

Axis data:Motion range

A1:±185 °
A2:-140 ° / -5 °
A3:0 ° / 155 °
A4:--
A5:--
A6:±350 °
