Technical data
Maximum reach:2900 mm

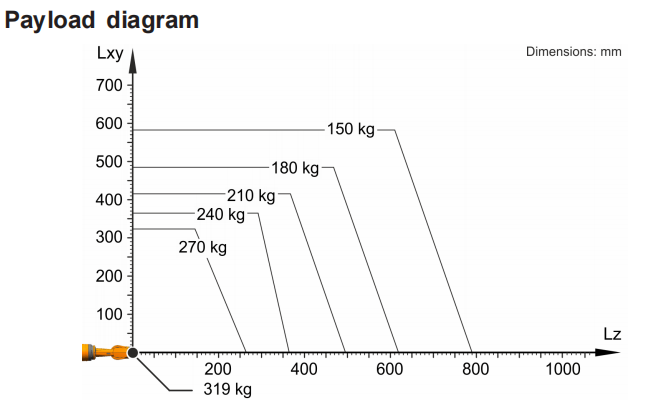

Rated payload:240 kg
Maximum payload:319kg
Maximum supplementary load, rotating column / link arm / arm
Pose repeatability (ISO 9283)：± 0.05 mm
Number of axes：6
Mounting position：：Floor
Footprint：754 mm x 754 mm
Weight:approx. 1120 kg
Axis data

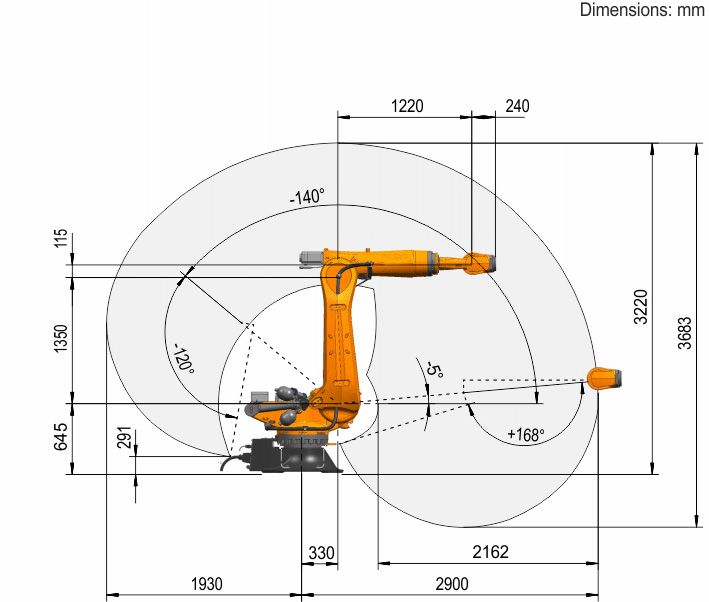

Motion range
A1:±185 °
A2:-140 ° / -5 °
A3:-120 ° / 168 °
A4:±350 °
A5:±122.5 °
A6:206 °/s.
