KR 210 R2700-2

Technical data

Maximum reach：：2701

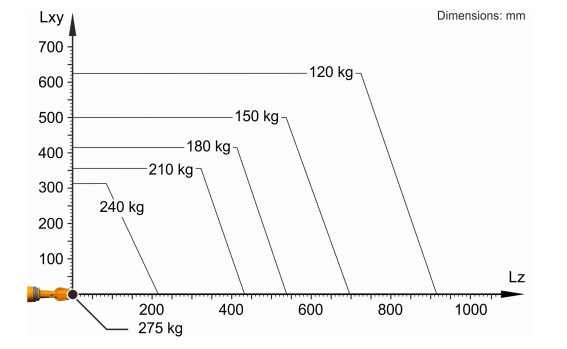

Rated payload：210kg

Maximum payload：275kg

Maximum supplementary load, rotating column / link arm / arm：300 kg / 130 kg / 150 kg

Pose repeatability (ISO 9283)：± 0.05 mm

Number of axes：6

Mounting position：Floor

Footprint：754 mm x 754 mm

Weight：1077kg

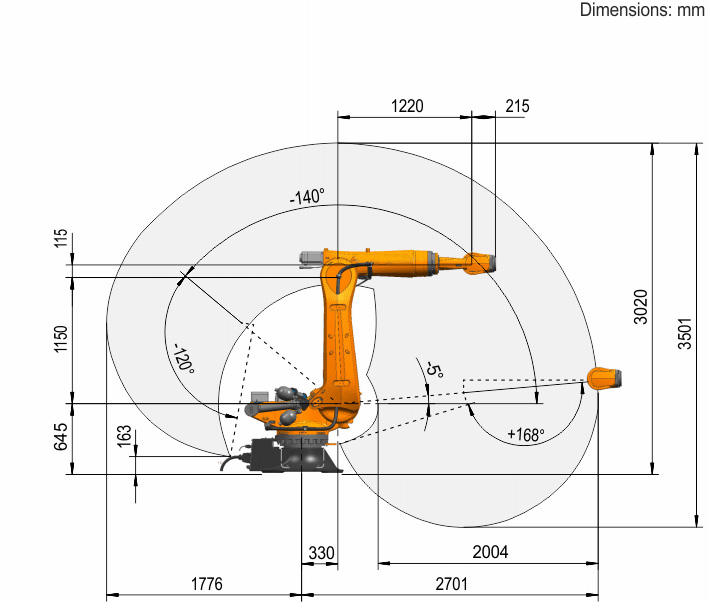

Axis data：Motion range
A1:±185 °
A2:-140 ° / -5 °
A3:-120 ° / 168 °
A4:±350 °
A5:±125 °
A6:±350 °
