SBV1270 Belt spindle

Stable and reliable structure

&The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.

&Convenient and efficient chip handling: The machine is equipped with two screws as standard to effectively discharge the chips generated during processing, with high conveying efficiency.

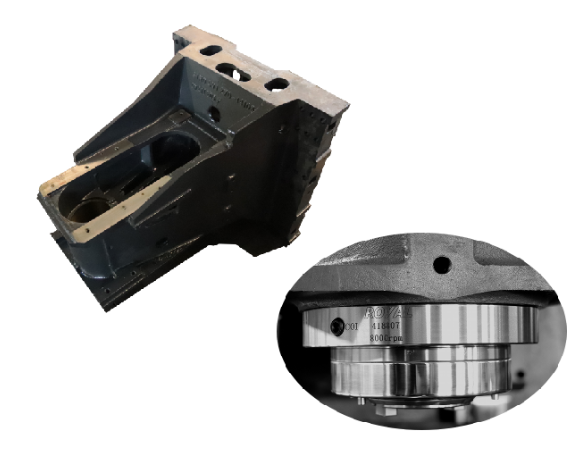

Closed spindle box

The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

Stable and reliable tool changing system

&The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.

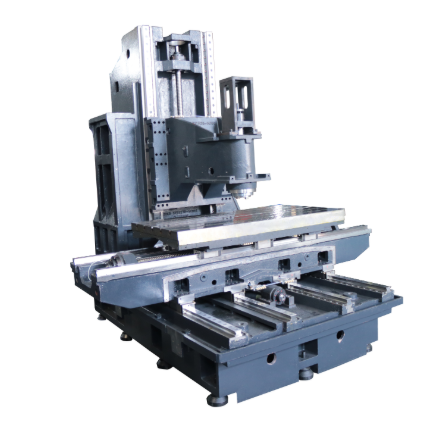

&The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.

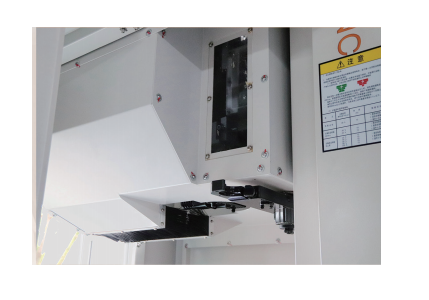

& The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.

&The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
